0.04mm Positioning Accuracy Soft Robotic Finger For Automobile Industry

Beijing Soft Robot Tech Co.,Ltd
Contact Now
    Buy cheap 0.04mm Positioning Accuracy Soft Robotic Finger For Automobile Industry from wholesalers

    Buy cheap 0.04mm Positioning Accuracy Soft Robotic Finger For Automobile Industry from wholesalers
    • Buy cheap 0.04mm Positioning Accuracy Soft Robotic Finger For Automobile Industry from wholesalers

    0.04mm Positioning Accuracy Soft Robotic Finger For Automobile Industry

    Ask Lasest Price
    Brand Name : Soft Robot Gripper
    Model Number : N5041
    Certification : FDA CE ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : Negotiation
    Delivery Time : 2-3 work days
    • Product Details
    • Company Profile

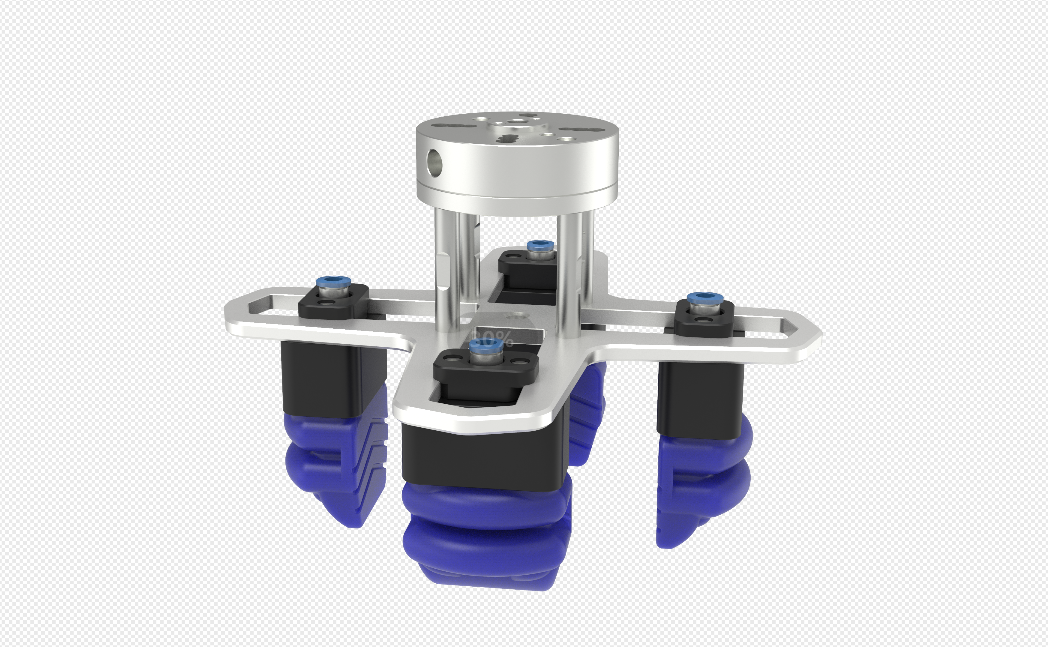

    0.04mm Positioning Accuracy Soft Robotic Finger For Automobile Industry

    N5041+High positioning accuracy+Soft robot finger


    Soft robot finger with repeatable positioning accuracy of up to 0.04mm


    The emergence of the soft robot finger solves the problem of gripping and handling shaped and fragile objects in the industrial sector. The main components are made of flexible materials and the variable stiffness structure enables the same finger to grasp objects of different sizes, shapes and weights, and to do so without damage while maintaining high speed. The technical principle underlying the design and manufacture of the flexible action unit is the principle of anisotropic deformation of super-elastic materials under pressure.

    W/mm50
    L/mm40.5
    Ln/mm66
    T/mm31.5
    X/mm1.5
    A/mm48
    B/mm27
    Smax/mm12
    Ymax/mm17
    weight/g104.3
    fingertip thrust/N19
    load coefficient of individual finger/gvertical710
    pack1200
    working speed/cpm<110
    product life/bout>300W
    working pressure-60~100kPa
    Connection diameter6mm
